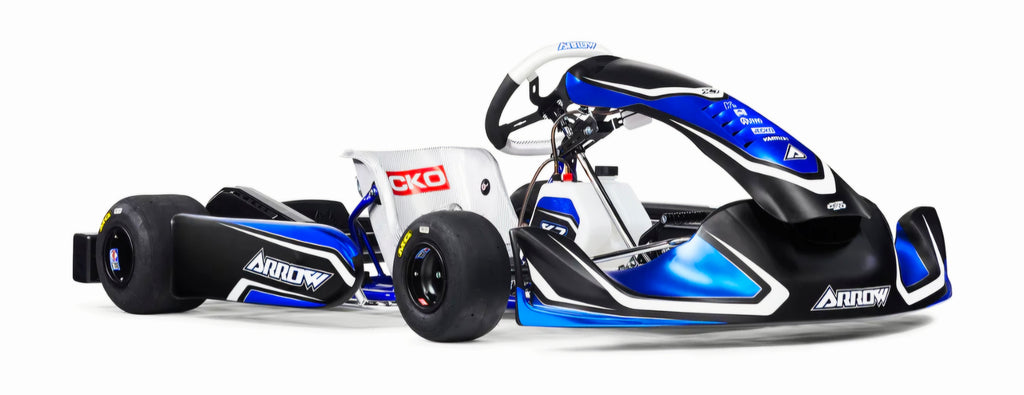

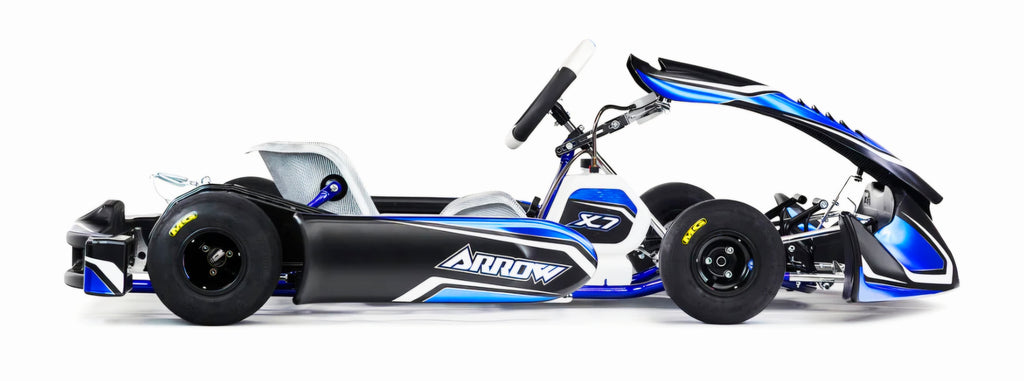

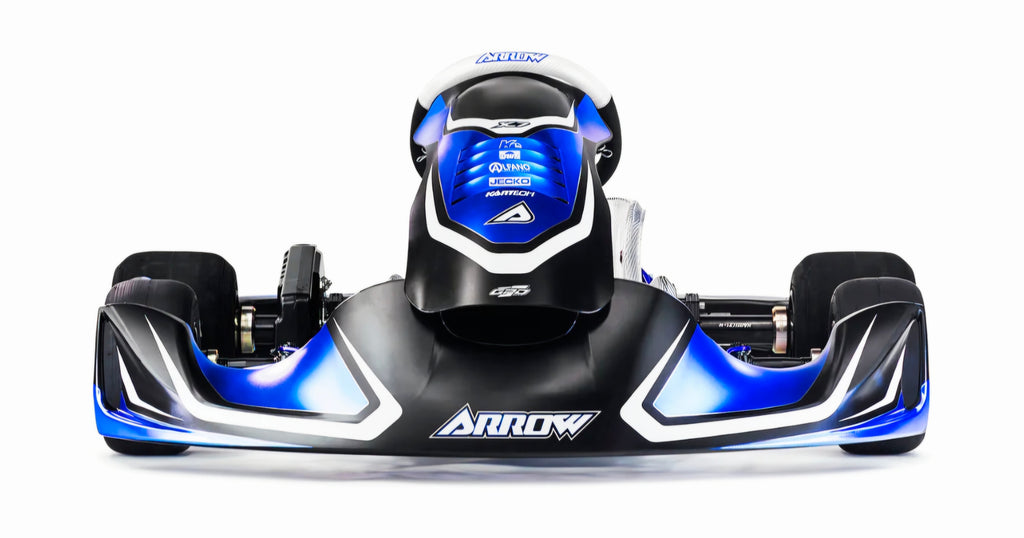

Arrow X7

FEATURES:

• 30/32mm chassis tubing
• 1043mm wheelbase
• 3-bearing chassis design, with 2 bearings supplied and fitted as standard. Extra bearing and carrier available to purchase separately

• Multiple radiator mounting positions
• DPE’s unique billet adjustable heel rest system, ensuring optimum comfort for all size drivers
• Removable/adjustable front torsion bar available in four stiffnesses:
  Nylon Soft, Soft (supplied standard), Medium, Hard
• Unique design camber/caster adjuster system, and adjustable front ride height
• Wider range of Ackerman adjustment
• 25mm stub axles with 10mm kingpin and 80mm magnesium wheel hubs
• Douglas SE black wheels

• KG 509 bodywork with matte chrome Arrow graphics kit
• New lower mounting bracket for Nassau panel welded to chassis
• Front dropdown bumper brackets
• Arrow embroidered silicon high grip steering wheel compatible with Alfano & Mychron units
• Jecko Composite Silver Floor Tray
• 8.5L Fuel Tank
• 50mm medium rear axle with 90mm magnesium wheel hubs
• Self-adjusting radially mounted black anodised billet alloy brake caliper with floating disc
• Adjustable rear ride height
• Enclosed chain guard with Kartech chain guard bracket
• Flat or angled top sliding engine mount system with low profile clamps
• 3-piece rear bumper with run loose kit
• tyres and seat NOT included
